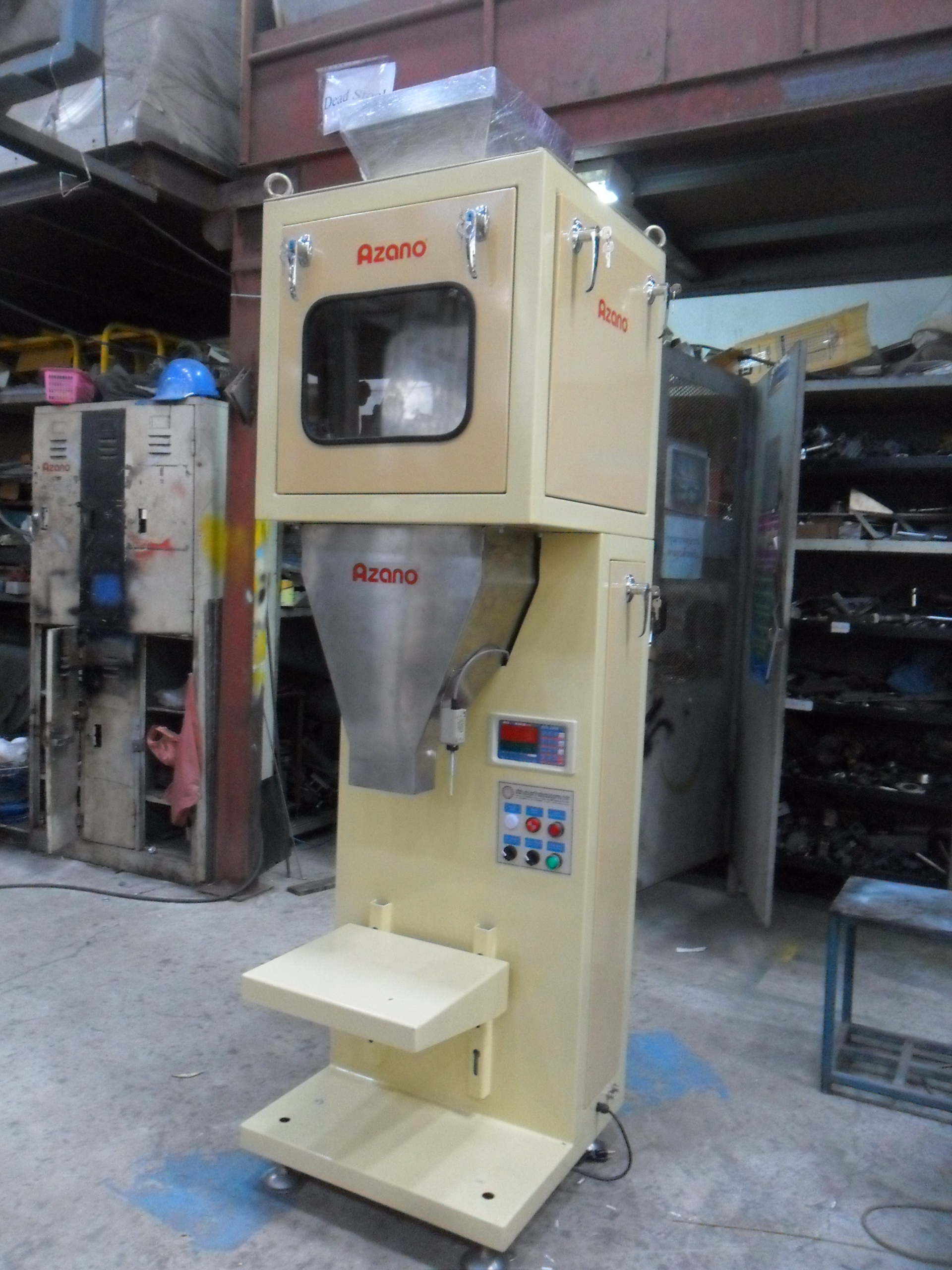

Semi Auto Packing Scale

Specification

Single and Twin weighing hopper connept. By gravity feeder,
for
granular product rice, sugar , plastic grain, beans and other
powdery granular substances of good fluidity. Compact design
saves space and height for installation.

DESCRIPTION

Model Measuring Range Accuracy Capacity Processing speed Machine Dimension Machine Weight Packing(Approx)

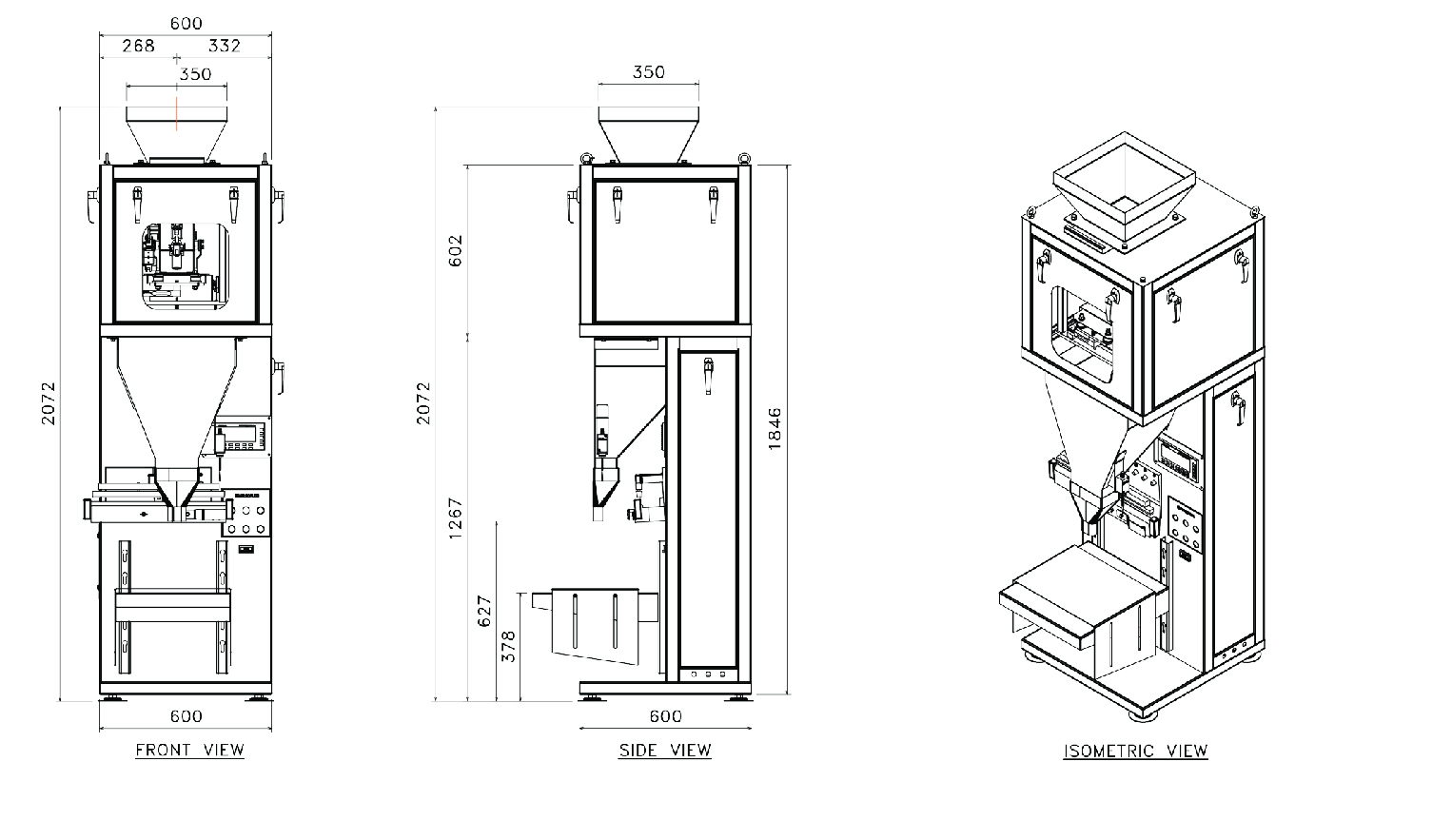

SA1 1-25 kg +-10 g. SA1 8-10PPM SA1 500-600 bag/Hour SA1 W700xL700xH2000mm SA1 150 kg SA1 2.5 CFM
Weight method Weight controller Control Method Power required Air consumption(N1/min) Air supply Structure Contact part
Net weight Azano F-800 3 stap 220VAC,50/60HZ,1PH 400(0.5Mpa) 5-6 bar 100 liter Steel painted SUS#304
